Drill Sergeant + Log Lock™ XL LL2580 Bundle — Save $150

BUY THE BUNDLE & SAVE $150

Accurate Mortise Drilling for Larger Logs

Take on larger log projects with greater accuracy and control. This bundle combines the USA-made Drill Sergeant – Angle Driller™ with the larger Log Lock™ XL LL2580, giving you an adjustable drilling system and heavy-duty support for oversized workpieces.

Adjust the Drill Sergeant from 0° to 45° to create straight or angled mortise holes for railings, log furniture, outdoor structures and more. The included Log Lock XL securely holds your workpiece to help reduce slipping and rotation while you drill.

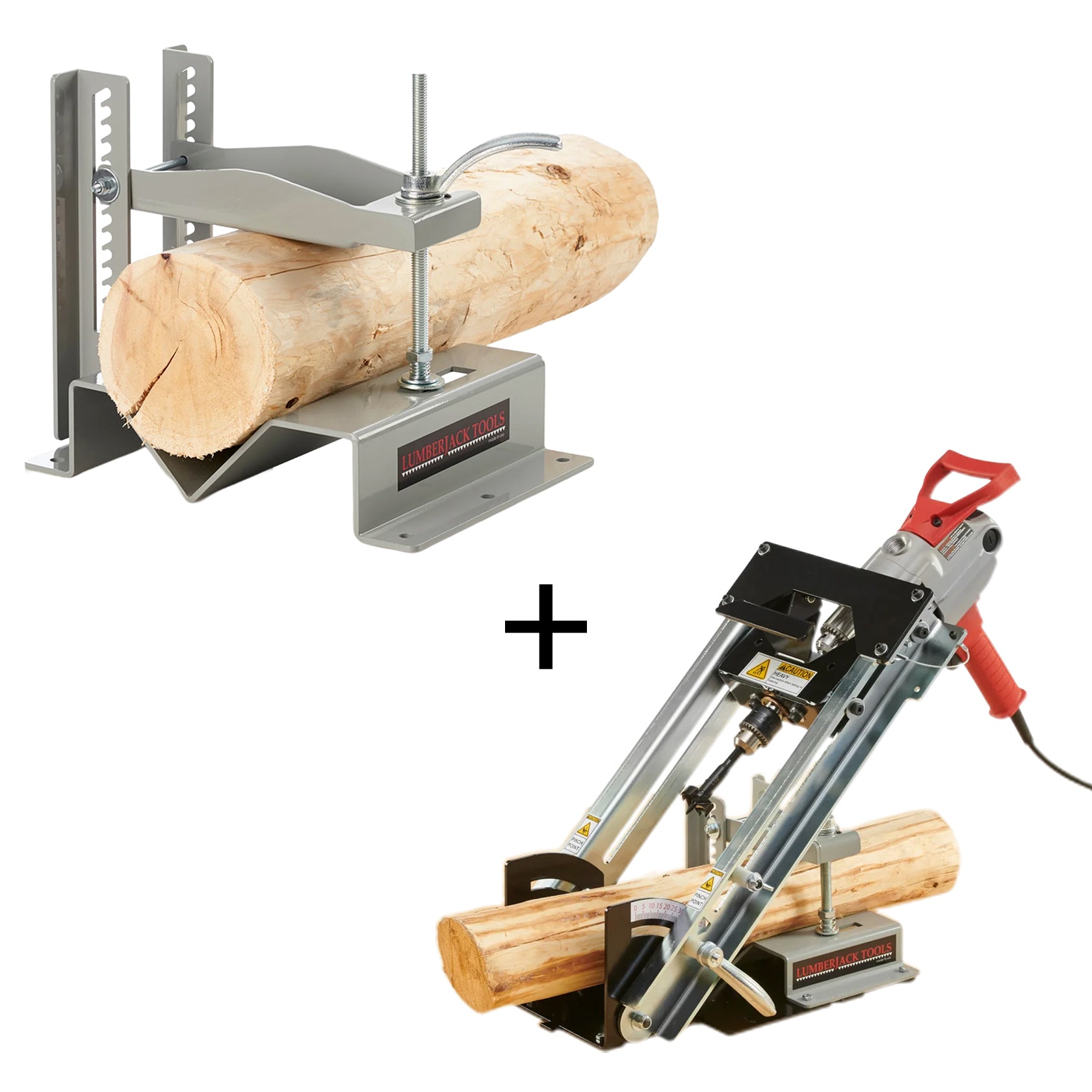

THIS BUNDLE INCLUDES

• 1 Drill Sergeant – Angle Driller™
• 1 Log Lock™ XL LL2580

MAXIMUM LOG DIAMETER

Up to 6-1/2" maximum log diameter when the Drill Sergeant is used with the LL2580.

The Log Lock XL can hold logs from 2-1/2" to 8" in diameter for general log-holding applications. When it is paired with the Drill Sergeant, the maximum log diameter is 6-1/2".

FEATURES & BENEFITS

• Adjustable drilling angle from 0° to 45°
• Peep Sight Angle Alignment Guide™ for accurate setup
• Adjustable drill-depth stop for consistent hole depth
• Works with self-feed bits up to 2"
• Fits most 1/2" drills
• Two-piece baseplate allows the Log Lock XL to mount on either side
• Versatile setup for left- or right-handed users
• Heavy-duty hardened shank and all-steel chuck
• Integral lock-out safety drop-prevention system
• Quick Turn adjustment handles
• Standard Zerk grease fitting for easier maintenance
• Bolts directly to a sturdy table or workbench
• Drill Sergeant is made in the USA

RECOMMENDED DRILLS

• Bosch PROFACTOR 18V Cordless 1/2" Drill/Driver
• Bosch GBM9-16 5/8" Drill
• Milwaukee 1660-6 Drill
• Most electric drills and 18V or higher cordless drills

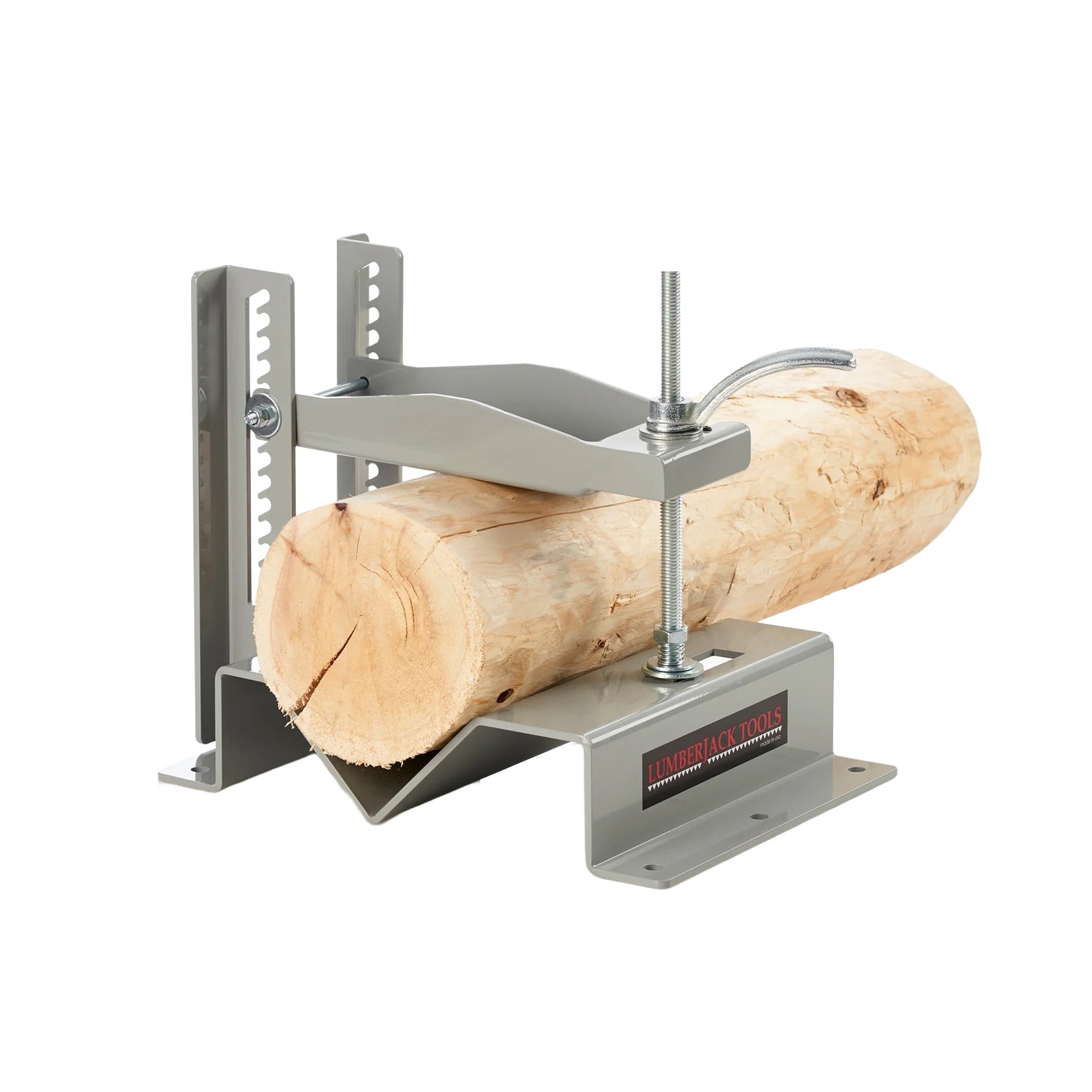

LOG LOCK XL SPECIFICATIONS

• Log Lock XL LL2580: 10" D × 14" W × 13-1/2" H
• General clamping range: 2-1/2" to 8" diameter logs
• Maximum with Drill Sergeant: 6-1/2" diameter logs

Please note: This bundle includes one Drill Sergeant and one Log Lock XL LL2580. The smaller LL1545 Log Lock is not included. Drill, drill bits, self-feed bits and workbench are not included.
